2" 370W Solar Submersible Pump with 400W Solar Panel with 40m Cable Package & Free Delivery

2" 370W Solar Submersible Pump with 400W Solar Panel with 40m Cable Package & Free Delivery

$2,350.00 AUD
$2,350.00 AUD
Sale Sold out

2" 370W Solar Submersible Pump with 400W Solar Panel with 40m Cable Package & Free Delivery

This 2" solar pump special deigned for 3" bore case. If your bore case is 4" or bigger, we recommend you get the 3" or 4" bore pumps as the screw rotors are stronger and last longer.

This solar pump body diameter is 2"/50mm, it suitable for 3" bore hole slow water flow and lift water up to 80m.  Daily water flow based on 6-8 hours peak sun per day in winter and 8-10 hours in summer. Below chart tested by 48V/DC. If pump works with 2 x 200w or 4 x 200w solar panels. the flow rate could less or more. It is easy to install, all plug and go. cost nothing to run after installation. This helical rotor pumps do not require expensive inverses and batteries to operate, however the controller will allow the use of storage batteries if required.

You will have to get the following and NOT included in package -

  1. A stainless-steel wire (called safety cable) to hold pump in bore. If pump water from dam or river.
  2. A float set up is required.
  3. Panels frames to support solar panels.
  4. Poly pipe from pump to water tank.
  5. Extra power cable and waterproof cable joiner.

Product Inclusions

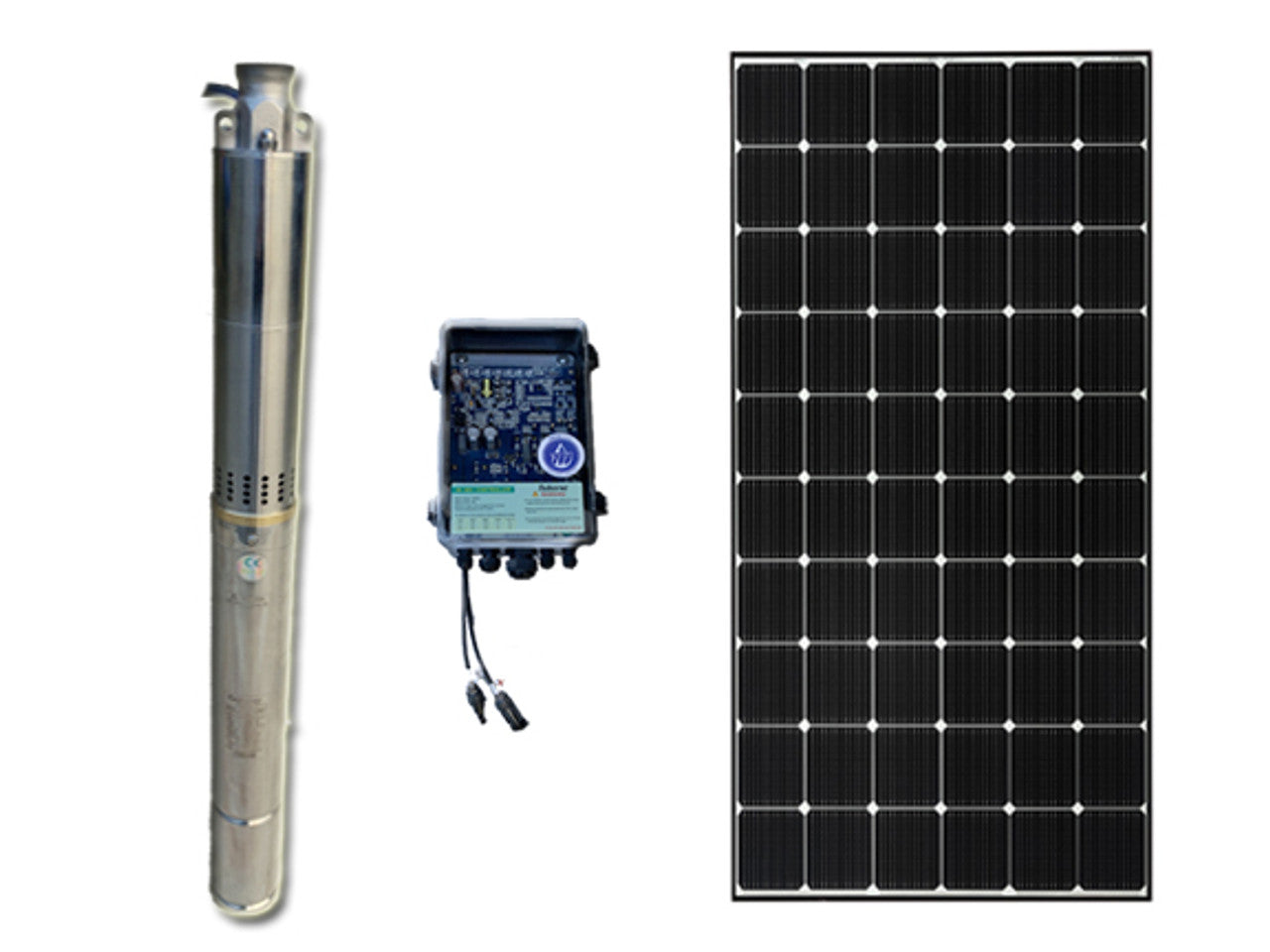

  • 2 x 200W Mono Crystalline A grade Solar Panels.
  • 2" 370W/36V stainless steel solar pump with 3m power cable.
  • Pump Control Box.
  • One spare helical screw rotor
  • 2 x MC4 extension cable for solar panels connect to control box.
  • 1 x 40m & 1 x 10m combined water sensor (for bore & water tank).
  • User manual.
  • 24 months (Pump & Control Box) back to base (Sydney) warranty.
  • Free delivery in Australia.

Product Specifications

Pump Specifications:

  • Pump Power: 370W/36VDC
  • Pump Type: Helical Screw Rotor
  • Maximum Head: 95m
  • Maximum Flow: 2000L/hr
  • Outlet: 1/2"
  • Weight: 10kg
  • Dimension: 58mm x 50mm
  • Maximum Depth: <95m

Pump recommended to run under 95m dynamic head.

Head      L/Min    Gal/Hr
80m           10L          133

60m           18L          240
40m           25L         330
10m           33L         440

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 100V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.

Options

240V/AC to 48V/Dc Converter
