6" 7.5KW 415V Submersible Bore Pump DS-09 & Free Delivery

6" 7.5KW 415V Submersible Bore Pump DS-09 & Free Delivery

$2,050.00 AUD
$2,050.00 AUD
Sale Sold out

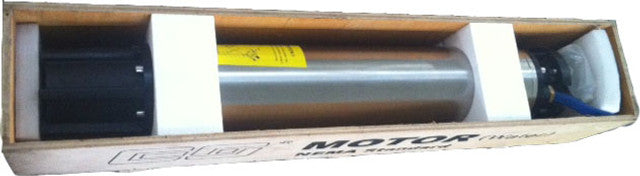

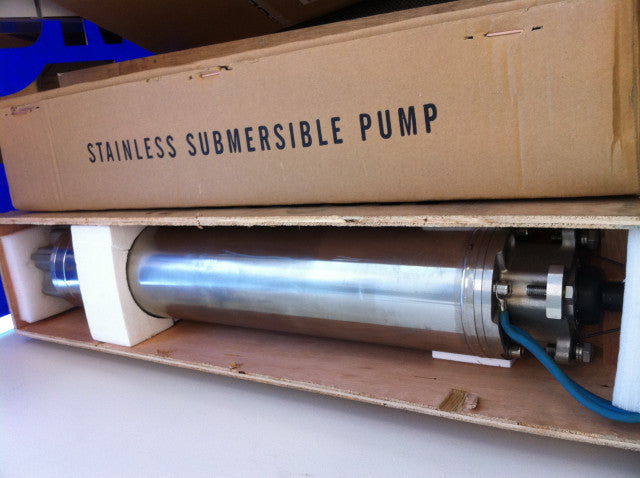

Submersible bore pump package includes -10HP 415V/50Hz motor, DS-09 pump and 10HP auto pump control box.

All three-phase submersible bore pumps comes standard with auto control box. It can be used with or without the control box.

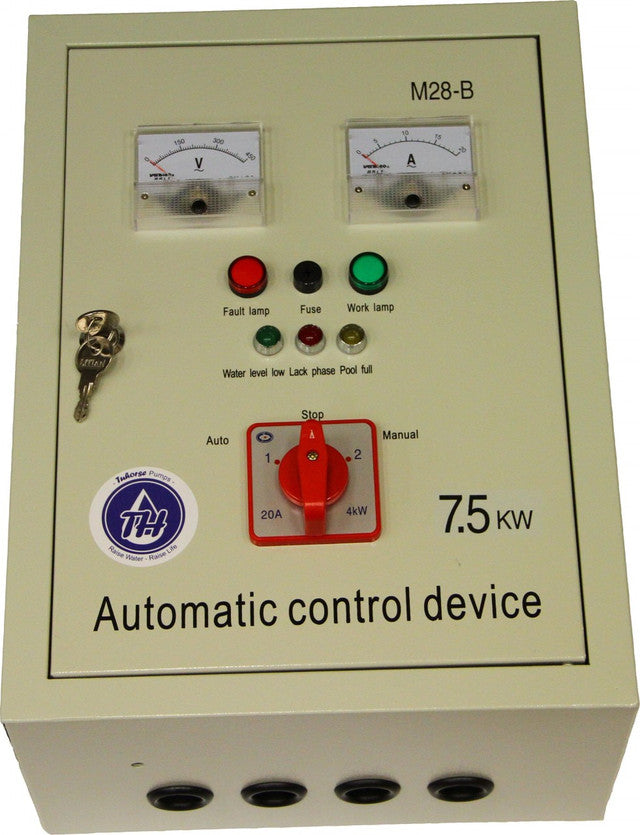

The three phase control box is built in current and voltage gauges, 6 water sensors to detect bore or water tank water level.

Product Inclusions

  • Power: 10HP/7500W

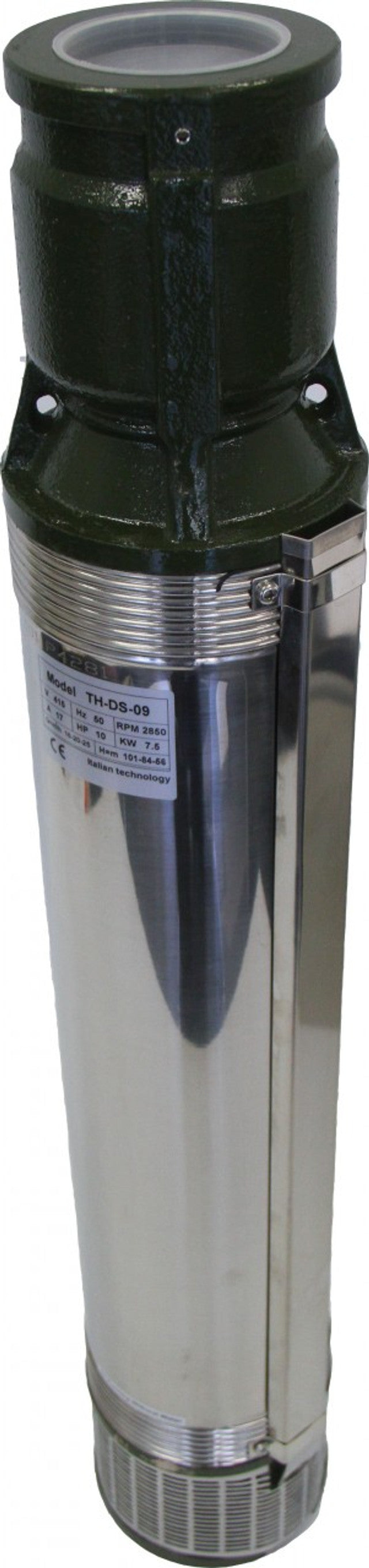

  • Model: DS-09
  • Voltage: 3 Phase 415V/50Hz
  • Current: 18.5A
  • Max Head: 138m
  • Max Flow: 363L/min or 38,000L/hr
  • Inlet/Outlet: 2.5"
  • Weight: 85Kg
  • Mtr & Pump Dimension: 1432mm x 150mm
  • Pump Cable: 2m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • This Tuhorse Pump is suitable for a 6"/150mm or large bore well (this pump actual diameter is 150mm).
  • Designed use for clear water farm irrigation or water supplier.
  • It is suited for very large water flow and deep bore.
  • Bore pump better preformace are from 20m to 100m deep.
  • Max delivery: 25,000L/h water at 26m.
Head             L/Min
116m               200L
101m               267L
93m               300L
84m               333L
75m               367L

56m               417L

Pump Auto Control
Box

3 Phase Pump Control Box
