4" DC/AC Hybrid Solar Pump with 1650W Solar Panel Package & Free Delivery

4" DC/AC Hybrid Solar Pump with 1650W Solar Panel Package & Free Delivery

$4,725.00 AUD
$4,725.00 AUD
Sale Sold out

4" DC/AC Hybrid Solar Pump with 1650W Solar Panel Package & Free Delivery

This solar pump is suitable for 5" or large bore. It is used for pumping water from the rivers, dams, creeks and springs and to transfer water from one site to another.
It is easy to install, all plug and go and cost nothing to run after installation.
This helical rotor pumps do not require expensive converters and batteries to operate, however the controller will allow the use of storage batteries if required.

  1. A stainless steel wire (called safety cable) to hold pump in bore. If pump water from dam or river. A float set up is required.
  2. Panels frames to support solar panels.
  3. Poly pipe from pump to water tank.

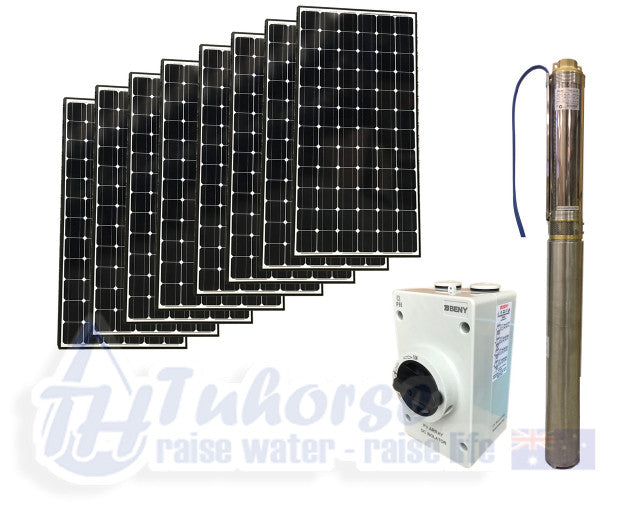

Product Inclusions

  • 6 x 275W Poly Crystalline A grade solar panels.
  • 4" DC/AC Motor with 3m Power Cable and Centrifugal Pump End.
  • 1 x Isolator switch.
  • 4 x 2m MC4 extension cable for connect solar panels to control box.
  • 1 x Splice kit for joining cable.
  • User manual.
  • 24 months back to base (Sydney) warranty.
  • Free delivery.

Product Specifications

Pump Specifications:

  • Brushless Permanent Magnet Motor.
  • Either DC/AC input motor, built in MPPT controller with low power and low water protection.
  • Motor output power from 750W-1500W, Input voltage from 90V-360V/DC (max open circuit voltage <440V) or 240V/AC.
  • Motor is water cooled without mechanical seal and bearing and designed to last longer.
  • Motor and pump are stainless steel 304.
  • A08 and S14 pump outlet: 1.25"/32mm
  • Up to maximum of 11 x 275W

Pump recommended NO more than 120m dynamic head.

Package with - A12 Pump End:
Head      L/Min      Gal/Hr
100m        15L          200
90m          20L          266
80m          30L          400
60m          45L          600
40m          55L          733

20m          62L          826
Package with - A08 Pump End:
Head      L/Min      Gal/Hr
110m        30L          400
100m       45L          600
80m          60L          800
70m          68L          907
60m          70L          933

50m          79L          1053
40m          80L          1067
30m          82L          1093
20m          84L          1120
10m           85L          1133
Solar Panel Specification
  • Solar Panel dimension: 1640mm x 992mm x 40mm
  • Weight: 19kg

Options

Pump Package Option

Switch Box

Switch box extra $350. This switch box allow pump auto/manual switch to AC or DC. Also have options to cut pump power off by sensor or pressure switch when water tank was full.
