4" 750W 240V Submersible Bore Pump MA-03 & Free Delivery

4" 750W 240V Submersible Bore Pump MA-03 & Free Delivery

$590.00 AUD
$590.00 AUD
Sale Sold out

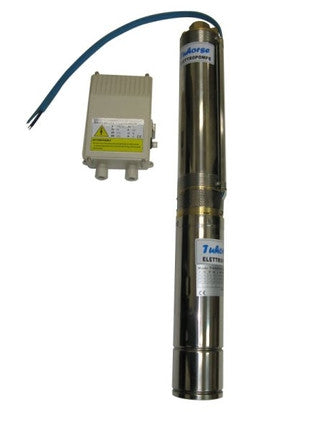

4" 750W 1HP 240V/50Hz Motor, TH-MA-03 Pump and 1HP Starter Box.

Product Inclusions

  • Power: 1HP/750W
  • Model: MA-03
  • Voltage: Single Phase 240V/50Hz
  • Current: 6.3A
  • Max Head: 129M
  • Max Flow: 267L/min or 16,000L/hr
  • Inlet/Outlet: 2"
  • Weight: 16Kg
  • Pump Dimension: 801mm x 100mm
  • Pump Cable: 1.5m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 15m head.
  • Maximum delivery - 16.000L/hr water.

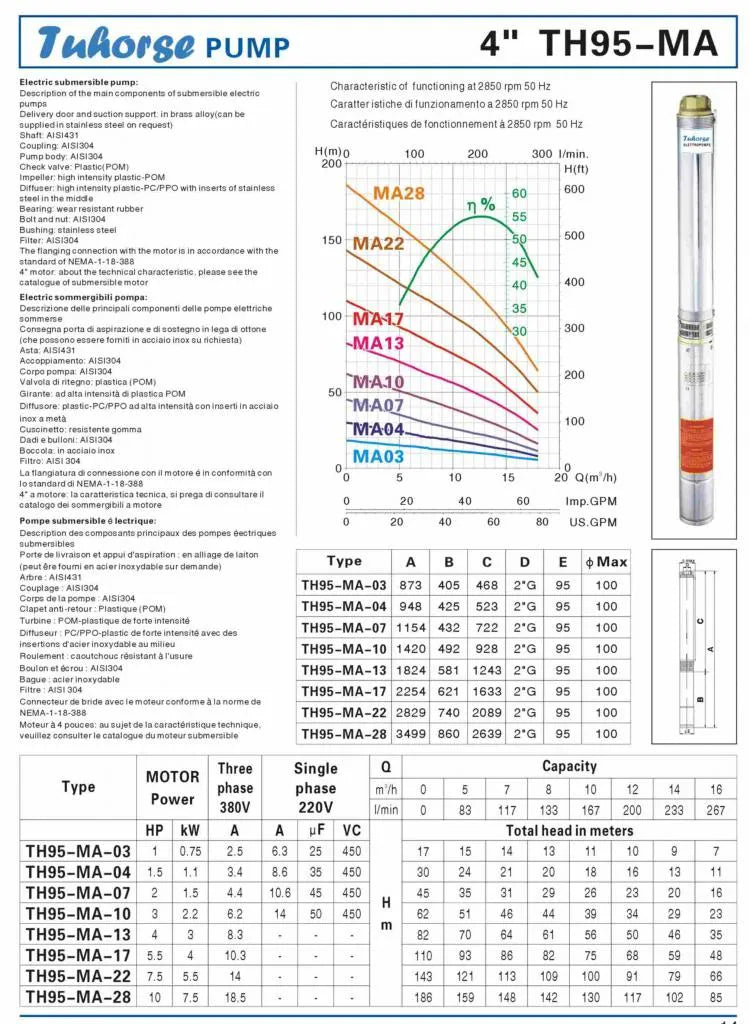

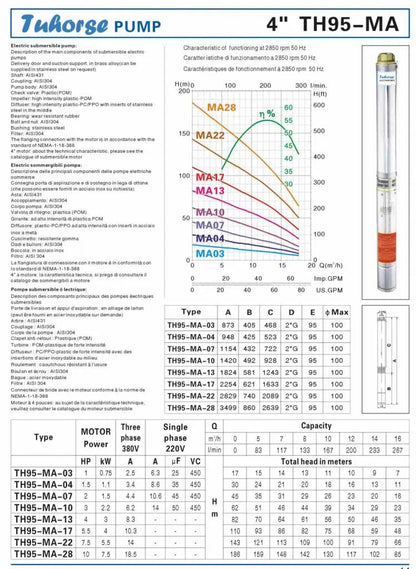

Head    L/Min
15m        83L
14m        117L
13m        133L
11m         167L
10m        200L
9m         233L
7m          267L

Options

Auto Starter Box Option

  • This submersible bore pump is packaged with a starter box.
  • It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

Cable Selection

Recommended Power Cable Size: -

0 - 75m = 3C & Earth x 2.5mm
