4" 750W 240V Submersible Bore Pump A-12 & Free Delivery

4" 750W 240V Submersible Bore Pump A-12 & Free Delivery

$610.00 AUD
$610.00 AUD
Sale Sold out

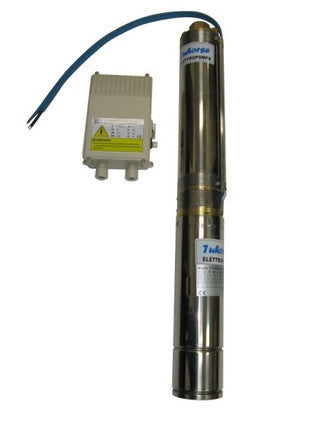

4" 750W 1HP 240V/50Hz Motor, TH-A-12/ Pump and 1HP Sarter Box.

Product Inclusions

  • Power: 1HP/750W
  • Model: A-12
  • Voltage: Single Phase 240V/50Hz
  • Current: 6.3A
  • Max Head: 98M
  • Max Flow: 35L/min or 2100L/hr
  • Inlet/Outlet: 1 1/4"
  • Weight: 16Kg
  • Pump Dimension: 956mm x 95mm
  • Pump Cable: 1.5m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 60m head.
  • Maximum delivery - 2,100L/hr water.
  • This is small power bore pump which can be run by a small generator.
Head        L/Min
93m         17L
89m         25L
83m         30L
73m         42L
62m         50L

10-60m   58L

Options

Auto Starter Box Option

  • This submersible bore pump is packaged with a starter box.
  • It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

Cable Selection

Recommended Power Cable Size: -

0 - 75m = 3C & Earth x 2.5mm
