4" 1500W 240V Submersible Bore Pump A-20 & Free Delivery

4" 1500W 240V Submersible Bore Pump A-20 & Free Delivery

$650.00 AUD
$650.00 AUD
Sale Sold out

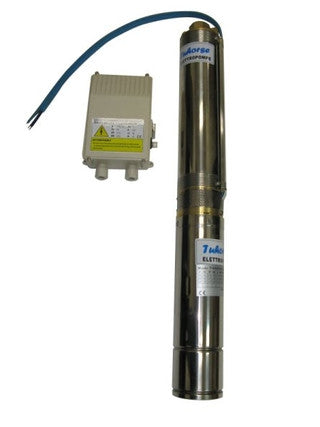

4" 1500W 2HP 240V/50Hz Motor, TH-A-20/2HP pump and 2HP Starter Box.

Product Inclusions

  • Power: 2HP/1100W
  • Model: A-20
  • Voltage: Single Phase 240V/50Hz
  • Current: 10.6A
  • Max Head: 162m
  • Max Flow: 58L/min or 3500L/hr
  • Inlet/Outlet: 1 1/4"
  • Weight: 18Kg
  • Pump Dimension: 1192mm x 95mm
  • Pump Cable: 1.5m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 60m head.
  • Maximum delivery - 3500L/hr water.
Head              L/Min
154m               17L
147m               25L
141m                30L
137m               33L
121m                42L
102m               50L
10-100m         58L

Options

Auto Starter Box Option

  • This submersible bore pump is packaged with a starter box.
  • It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

Cable Selection

Recommended Power Cable Size: -

0 - 160m = 3C & Earth x 4mm
