4" 550W 240V Submersible Bore Pump A-08 & Free Delivery

4" 550W 240V Submersible Bore Pump A-08 & Free Delivery

$555.00 AUD
$555.00 AUD
Sale Sold out

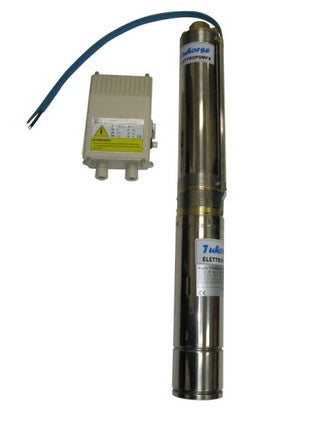

4" 550W 0.75HP 240V/50Hz Motor, TH-A-08/0.75HP Pump and 0.75HP Starter Box.

Product Inclusions

  • Power: 0.75HP/550W
  • Model: A-08
  • Voltage: Single Phase 240V/50Hz
  • Current: 4.8A
  • Max Head: 66m
  • Max Flow: 58L/min or 3500L/hr
  • Inlet/Outlet: 1 1/4"
  • Weight: 14Kg
  • Pump Dimension: 831mm x 95mm
  • Pump Cable: 1.5m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

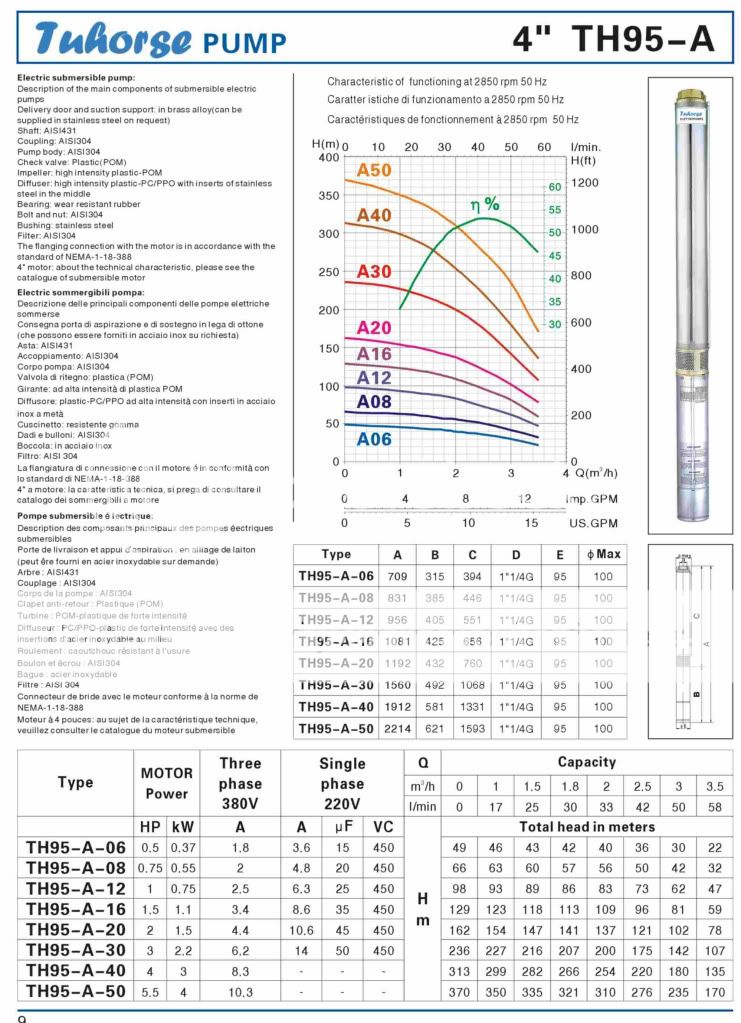

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 60m head.
  • Max delivery - 3500L/hr
Head      L/Min
63m          17L
60m         25L
57m         30L
50m         42L
42m         50L

10-37m    58L

Options

Auto Starter Box Option

  • This submersible bore pump is packaged with a starter box.
  • It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

Cable Selection

Recommended Power Cable Size: -

0 - 75m = 3C & Earth x 2.5mm
