4" 500W Solar Submersible Pump with 800W Solar Panel with 40m Cable Package & Free Delivery

Our 4"500W solar submersible pump with 40m of cable features an advanced 3-phase brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start and Maximum Power Point Tracking (MPPT). With max flows up to 3,300L/hr at a price that can't be beat, you will quickly see why this pump is perfect for high flow on low head.

Built to last in Australia's tough agricultural environment, this pump delivers strong volumes at decent levels up to 70m of head. Our standard package comes complete with a ton of extras and 4 x 200W solar panels for optimal performance. With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply

 locally: (package does not include the following)

  1. A stainless steel wire (called safety cable) to hold pump in bore. If pump water from dam or river. A float set up is required.
  2. Panels frames to support solar panels.
  3. Poly pipe from pump to water tank.

Product Inclusions

  • 4 x 200W mono crystalline A grade solar panels.
  • 4" 500W/48V stainless steel solar pump fitted with extra 40M power cable.
  • Pump control box.
  • One spare helical screw rotor.

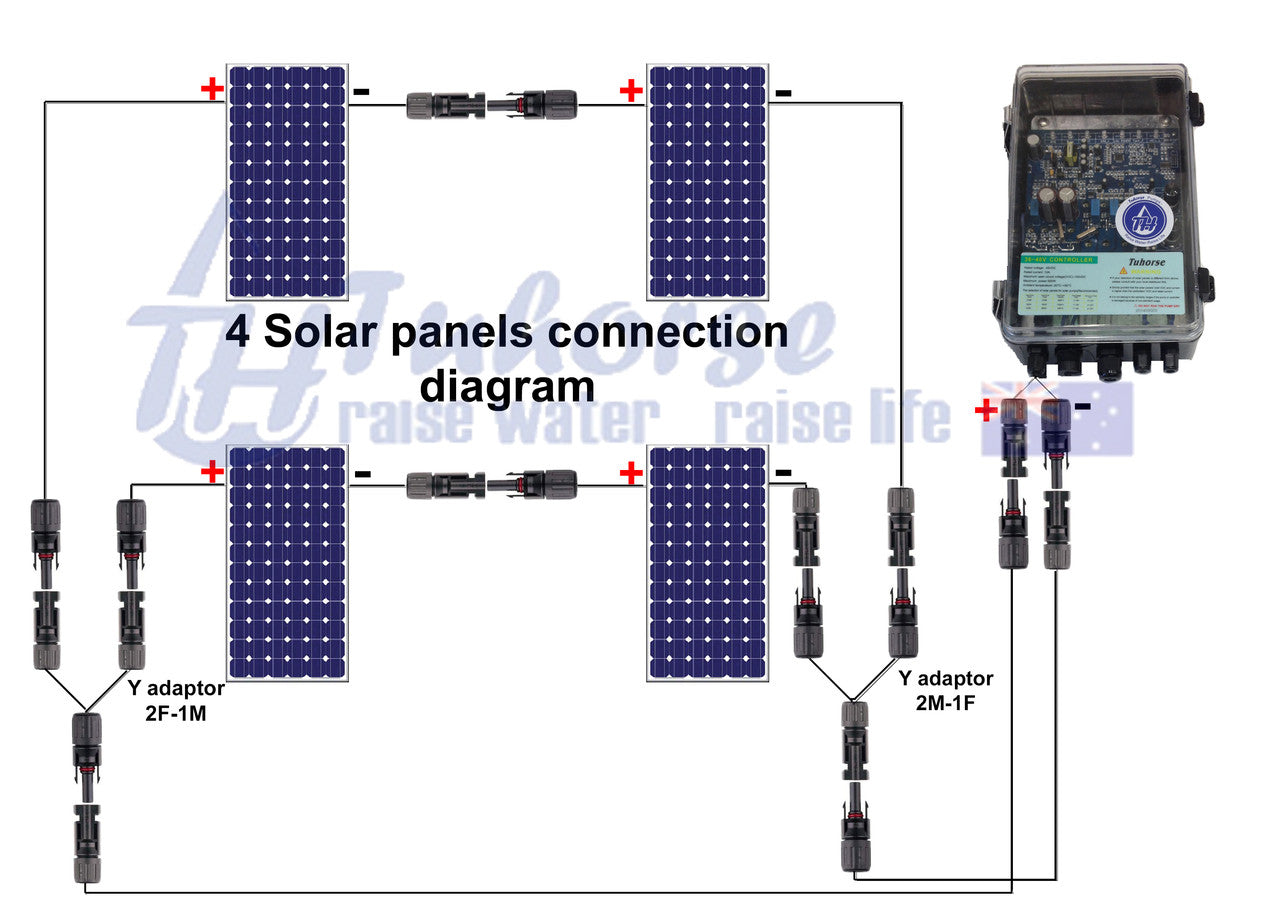

  • 2 x 2M with MC4 extension cable for connect solar panels to control box.
  • 2 x Y Adaptors.
  • 1 x 40M & 1x 10M water sensors (for bore and tank).
  • User manual.
  • 24 months (Pump & Control Box) back to base (Sydney) warranty.
  • Free delivery.

Product Specifications

Pump Specifications:

  • Pump Power: 500W/48VDC
  • Pump Type: Helical Screw Rotor
  • Maxi Head: 80M
  • Maxi Flow: 45L/min
  • Outlet: 1"
  • Weight: 14kg
  • Dimension: 100mm x 500mm
  • Maximum Depth: <80m

Pump recommended NO more than 80m dynamic head.

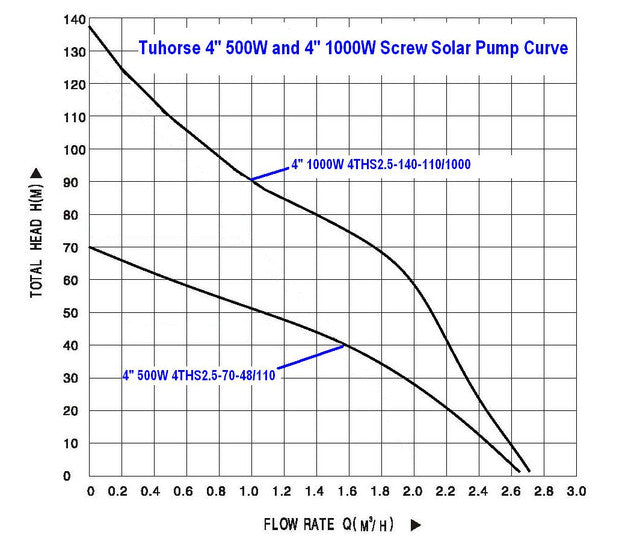

Head      L/Min     Gal/Hr
50m           15L          200
40m           20L          260
30m           30L          400
20m           35L          470

10m           40L          540

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 100V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.

Options

240V/AC to 48V/Dc Converter
