4" 4000W 415V Submersible Bore Pump MA-17 & Free Delivery

4" 4000W 415V Submersible Bore Pump MA-17 & Free Delivery

$1,140.00 AUD
$1,140.00 AUD
Sale Sold out

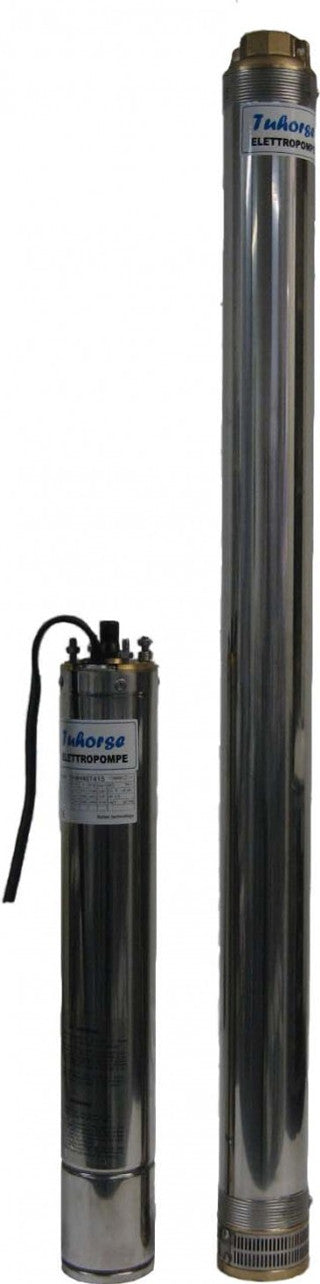

Submersible bore pump package includes - 5.5HP 415V/50Hz motor, MA-17/3HP pump and 5.5HP auto pump control box.

All three-phase submersible bore pumps comes standard with pump auto control box. It can be used with or without control box.

The three phase control box have built in current and voltage gauge, 6 water sensors to detect either bore or tank's water level.

Product Inclusions

  • Power: 5.5HP/4000W
  • Model: MA-17
  • Voltage: 3 Phase 415V/50Hz
  • Current: 10.3A
  • Max Head: 110m
  • Max Flow: 267L/min or 16,000L/hr
  • Inlet/Outlet: 2"
  • Weight: 40Kg
  • Pump Dimension: 2211mm x 95mm
  • Pump Cable: 3m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 220m head.
  • Maximum delivery - 16,000L/hr water.

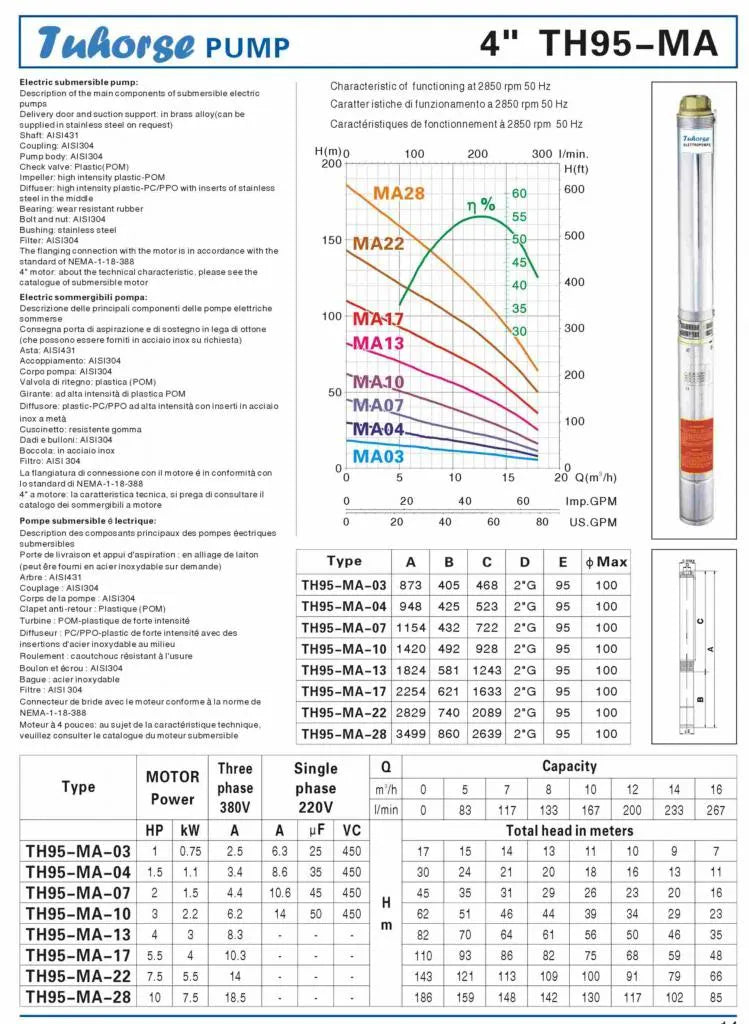

Head             L/Min
228m               83L
224m               117L
217m                133L
201m               167L
176m               200L

140m               233L
10-135m          267L

Pump Control Box

3 Phase Pump Control Box
