4" 7500W 415V Submersible Bore Pump DG-24 & Free Delivery

4" 7500W 415V Submersible Bore Pump DG-24 & Free Delivery

$2,000.00 AUD
$2,000.00 AUD
Sale Sold out

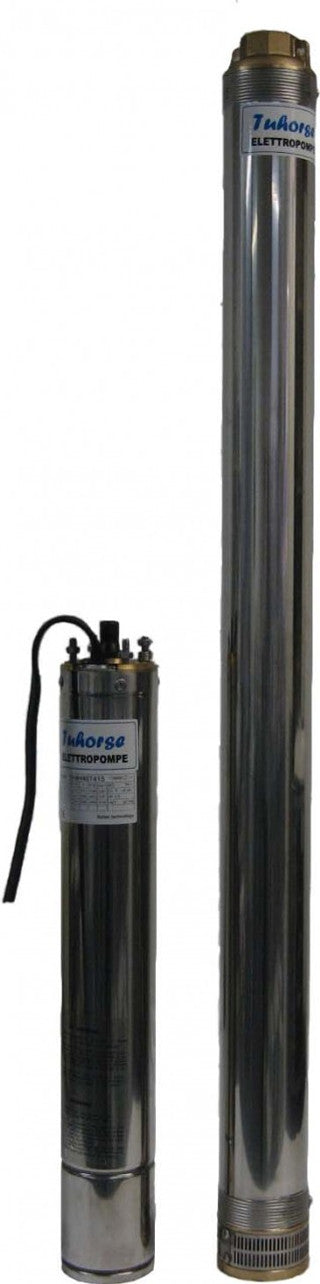

Submersible bore pump package includes - 10HP 415V/50Hz motor, DG-24/10HP pump and 10HP auto pump control box.

    All three-phase submersible bore pumps comes standard with pump auto control box. It can be used with or without control box.

    The three phase control box have built in current and voltage gauge, 6 water sensors to detect either bore or tank's water level.

    Product Inclusions

    • Power: 10HP/7500W
    • Model: DG-24
    • Voltage: 3 Phase 415V/50Hz
    • Current: 18.5A
    • Max Head: 160m
    • Max Flow: 333L/min or 20,000L/hr
    • Inlet/Outlet: 2"
    • Weight: 55Kg
    • Pump Dimension: 2941mm x 95mm
    • Pump Cable: 3m
    • Warranty: 12 months return to base warranty in Australia.

    Product Specifications

    Pump Specifications:

    • Pump diameter is 4"/100mm.
    • It is suitable for a 5" or large bore well.
    • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 70m head.
    • Maximum delivery - 20,000L/hr water.

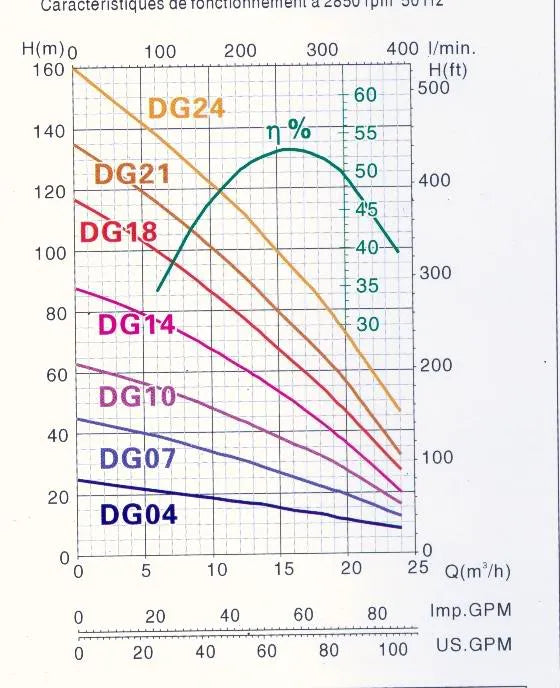

    Head             L/Min
    138m               100L
    126m               150L
    114m               200L
    104m              233L
    94m               267L

    84m               300L
    5-73m            333L

    Pump Auto Control
    Box

    3 Phase Pump Control Box
