4" 550W 240V Submersible Bore Pump S-12 & Free Delivery

• Power: 0.75HP/550W
• Model: S-12
• Voltage: Single Phase 240V/50Hz
• Current: 4.8A
• Max Head: 102M
• Max Flow: 35L/min or 2100L/hr
• Inlet/Outlet: 1 1/4"
• Weight: 14Kg
• Pump Dimension: 880mm x 95mm
• Pump Cable: 1.5m
• Warranty: 12 months return to base warranty in Australia.

Pump Specifications:

• Pump diameter is 4"/100mm.
• It is suitable for a 5" or large bore well.
• Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 60m head.
• Maximum delivery - 2,100L/hr water.
• This is small power bore pump which can be run by a small generator.

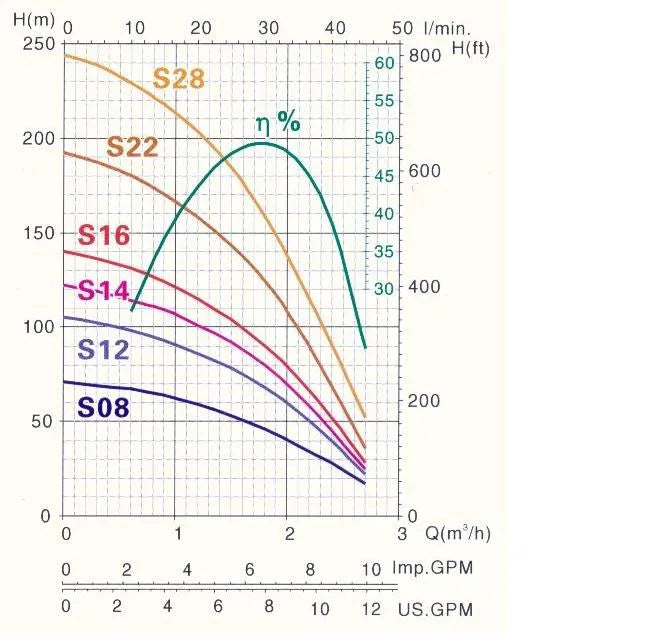

Head      L/Min

102m          5L

98m          10L

93m          15L

86m          20L

78m          25L

68m          30L

10-67m     35L

Auto Starter Box Option

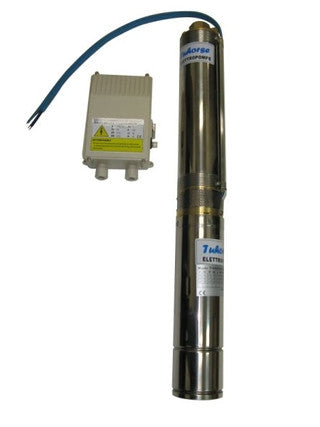

• This submersible bore pump is packaged with a starter box.
• It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

Cable Selection

Recommended Power Cable Size: -

0 - 75m = 3C & Earth x 2.5mm
