6" 11KW 415V Submersible Bore Pump SP60 & Free Delivery

6" 11KW 415V Submersible Bore Pump SP60 & Free Delivery

$3,190.00 AUD
$3,190.00 AUD
Sale Sold out

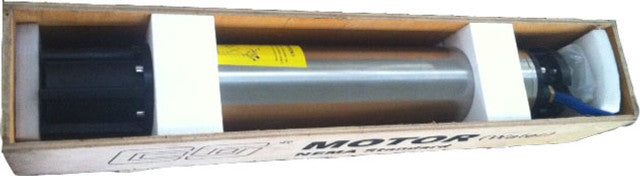

Submersible bore pump package includes -15HP 415V/50Hz motor, 6SP60-6 pump and 15HP auto pump control box.

All three-phase submersible bore pumps comes standard with auto control box. It can be used with or without the control box.

The three phase control box is built in current and voltage gauges, 6 water sensors to detect bore or water tank water level.





Product Inclusions

  • Power: 15HP/11KW

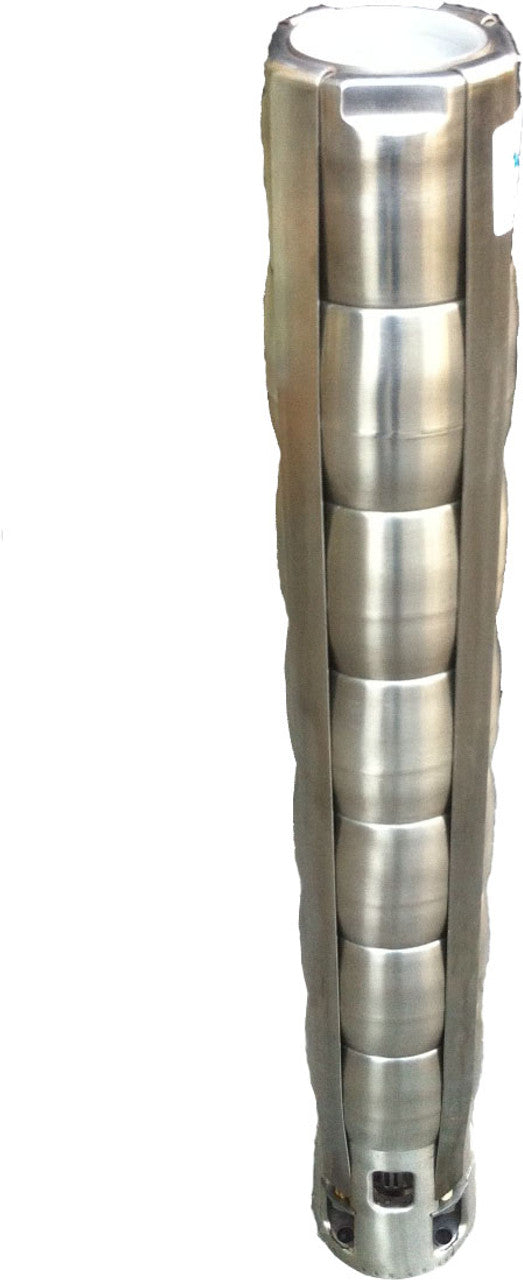

  • Model: 6SP60
  • Voltage: 3 Phase 415V/50Hz
  • Current: 24A
  • Max Head: 85m
  • Max Flow: 1200L/min or 72,000L/hr
  • Inlet/Outlet: 3"
  • Weight: 88Kg
  • Mtr & Pump Dimension:      1950mm x 150mm
  • Pump Cable: 2m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Is suitable for a 6"/150mm or large bore well (this pump actual diameter is 150mm).
  • Designed use for clear water farm irrigation or water supplier.
  • It is suited for very large water flow and deep bore.
  • Bore pump best performance are from 20m to 65m deep.
  • Max delivery: 72,000L/h water at 37m.
Head             L/Min
75m               400L
70m               500L
67m               600L
64m               700L
59m               900L

53m               1000L
15-52m          1200L

Pump Auto Control
Box

3 Phase Pump Control Box
