4" 2200W 240V Submersible Bore Pump A-30 & Free Delivery

4" 2200W 240V Submersible Bore Pump A-30 & Free Delivery

$860.00 AUD
$860.00 AUD
Sale Sold out

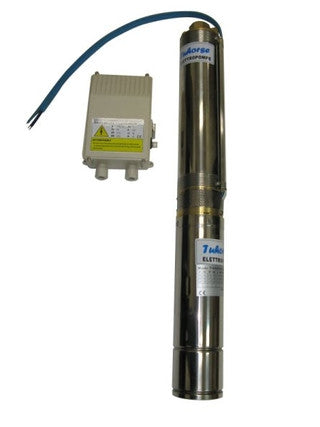

4" 2200W 3HP 240V/50Hz Motor, TH-A-30/3HP Pump and 3HP Starter Box.

Product Inclusions

  • Power: 3HP/2200W
  • Model: A-30
  • Voltage: Single Phase 240V/50Hz
  • Current: 14A
  • Max Head: 236m
  • Max Flow: 58L/min or 3500L/hr
  • Inlet/Outlet: 1 1/4"
  • Weight: 25Kg
  • Pump Dimension: 1560mm x 95mm
  • Pump Cable: 2m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 60m head.
  • Maximum delivery - 3500L/hr water.
Head            L/Min
227m              17L
216m              25L
207m              30L
200m             33L
175m               42L

142m               50L
5-140m           58L

Options

Auto Starter Box Option

  • This submersible bore pump is packaged with a starter box.
  • It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

Cable Selection

Recommended Power Cable Size: -

0 - 230m = 3C & Earth x 4mm
