4" 1500W 240V Submersible Bore Pump BF-11 & Free Delivery

• Power: 2HP/1500W
• Model: BF-11
• Voltage: Single Phase 240V/50Hz
• Current: 10.6A
• Max Head: 82m
• Max Flow: 117L/min or 7000L/hr
• Inlet/Outlet: 1 1/2"
• Weight: 18Kg
• Pump Dimension: 1070mm x 95mm
• Pump Cable: 2m
• Warranty: 12 months return to base warranty in Australia.

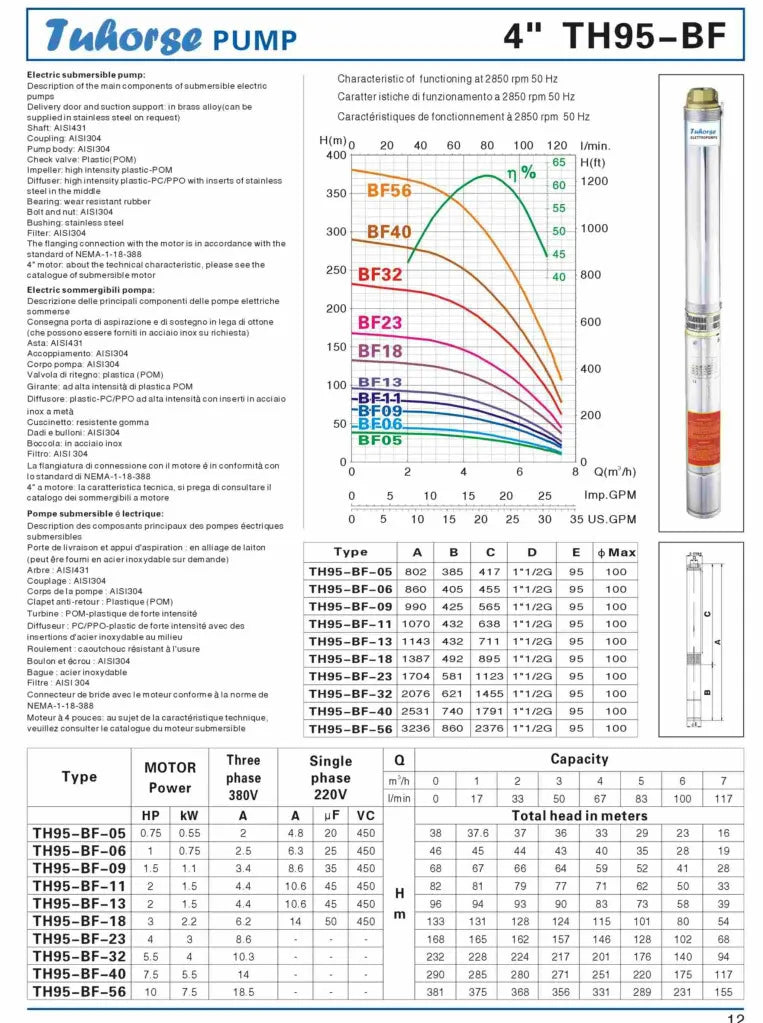

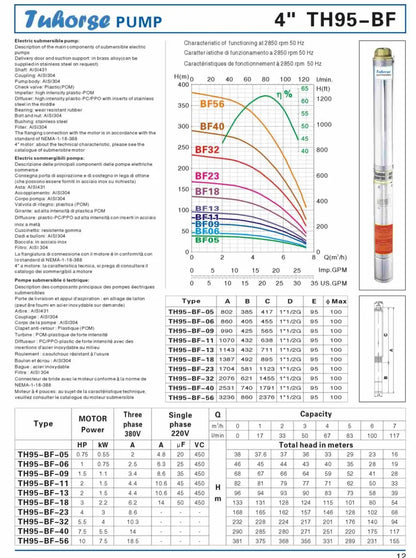

Pump Specifications:

• Pump diameter is 4"/100mm.
• It is suitable for a 5" or large bore well.
• Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 80m head.
• Maximum delivery - 7000L/hr water.

Head              L/Min

154m               17L

147m               25L

141m                30L

137m               33L

121m                42L

102m               50L

10-100m         58L

Auto Starter Box Option

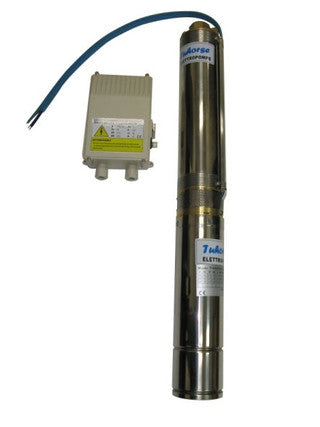

• This submersible bore pump is packaged with a starter box.
• It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

Cable Selection

Recommended Power Cable Size: -

0 - 160m = 3C & Earth x 4mm
