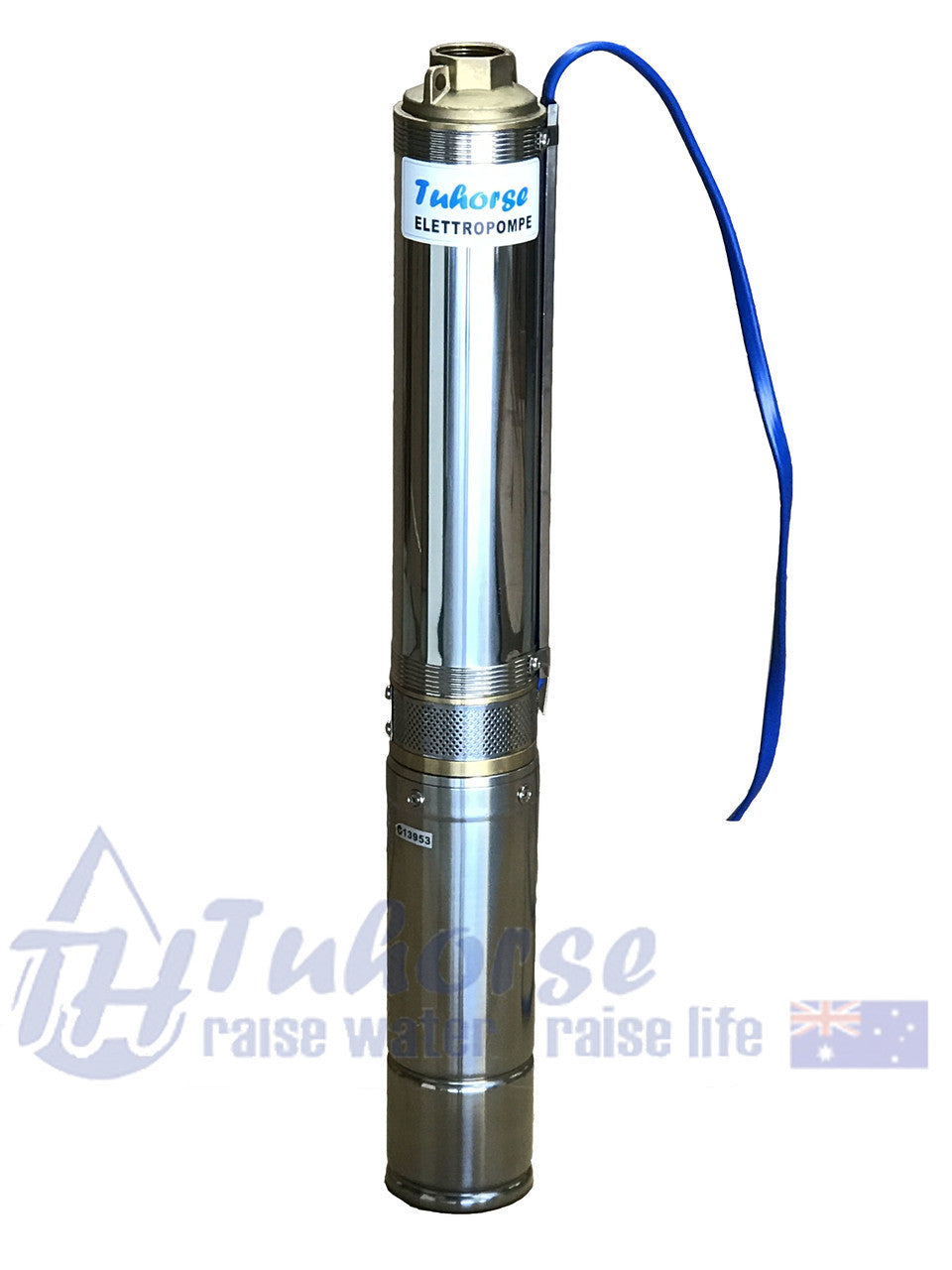

4" 1000W Solar Centrifugal Submersible Pump A08 with 3m Cable & Free Delivery

4" 1000W Solar Centrifugal Submersible Pump A08 with 3m Cable & Free Delivery

$1,620.00 AUD
$1,620.00 AUD
Sale Sold out

4" 1000W Solar Centrifugal Submersible Pump with 3m Cable & Free Delivery. Pump model: THC5-A08-110/1000.

This solar pump package is suitable for bore hole from 10m-100m. Daily water flow base on 6-8 hours sun per day in winter and 8-10 hours in summer.

This solar pump is suitable for 4" or large bore. It is used for pumping water from the rivers, dams, creeks and springs and to transfer water from one site to another. It is easy to install, all plug and go and cost nothing to run after installation. This helical rotor pumps do not require expensive converters and batteries to operate, however the controller will allow the use of storage batteries if required.

NOTE: You have to get below items locally: (package does not include the following)

  1. A stainless steel wire (called safety cable) to hold pump in bore. If pump water from dam or river. A float set up is required.
  2. Panels frames to support solar panels.
  3. Poly pipe from pump to water tank.

Product Inclusions

  • 4" 1000W/110V Centrifugal Multi Stage Impellers Solar Pump A08 fitted with 3m power cable.
  • Pump control box.
  • One spare helical screw rotor.
  • 2 x 2m with MC4 extension cable for solar panels connect to control box.
  • 1 x 40m & 1 x 10m combined water sensor (for bore & water tank).
  • User manual.
  • 24 months (Pump & Control Box) back to base (Sydney) warranty.
  • Free delivery in Australia.

Product Specifications

Pump Specifications:

  • Pump Power: 1000W/110VDC
  • Pump Type: Multistage Impellers
  • Maxi Head: 100m
  • Maxi Flow: 5000L/Hr (rated @ 110V/DC)
  • Outlet: 1 1/4"
  • Weight: 18kg
  • Dimension: 100mm x 650mm
  • Maximum Depth: <100m

Pump recommended NO more than 100m dynamic head.

Head      L/Min      Gal/Hr
50m        1500L       396
40m        2800L       739
20m        3500L       924
5-15m     4000L      1056

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 200V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.

Options

240V/AC to 110V/Dc Converter

Solar Panel
