4" 1000W Solar Centrifugal Submersible Pump 800W Solar Panel with 40m Cable & Free Delivery

4" 1000W Solar Centrifugal Submersible Pump 800W Solar Panel with 40m Cable & Free Delivery

$3,600.00 AUD
$3,600.00 AUD
Sale Sold out

This 4"1000W Centrifugal impeller bore pump produces more water flow, but less pressure. Pump model: THC5-A08-110/1000

Our 4" 1000W solar submersible pump with 40m of cable features an advanced 3-phase brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start and Maximum Power Point Tracking (MPPT). With max flows up to 4,000L/hr at a price that can't be beat, you will quickly see why this pump is one of our biggest sellers.

Built to last in Australia's tough agricultural environment, this pump delivers strong volumes up to 70m of head. Our standard package comes complete with a ton of extras and 4 x 200W solar panels for optimal performance. With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply

NOTE: You have to get below items locally: (package does not include the following)

  1. A stainless steel wire (called safety cable) to hold pump in bore. If pump water from dam or river. A float set up is required.
  2. Panels frames to support solar panels.
  3. Poly pipe from pump to water tank.

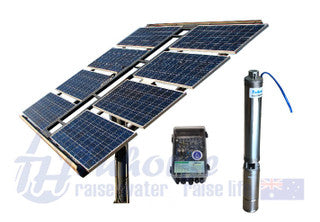

Product Inclusions

  • 4 x 200W mono crystalline A grade solar panels.
  • 4" 1000W/110V Centrifugal Multi Stage Impellers Solar Pump A08 fitted with 40m power cable.
  • Pump control box.
  • One spare helical screw rotor.
  • 2 x 2m with MC4 extension cable for solar panels connect to control box.
  • 1 x 40m & 1 x 10m combined water sensor (for bore & water tank).
  • User manual.
  • 24 months (Pump & Control Box) back to base (Sydney) warranty.
  • Free delivery in Australia.

Product Specifications

Pump Specifications:

  • Pump Power: 1000W/110VDC
  • Pump Type: Multistage Impellers
  • Maxi Head: 100M
  • Maxi Flow: 5000L/Hr (rated @ 110V/DC)
  • Outlet: 1 1/4"
  • Weight: 18kg
  • Dimension: 100mm x 650mm
  • Maximum Depth: <100m

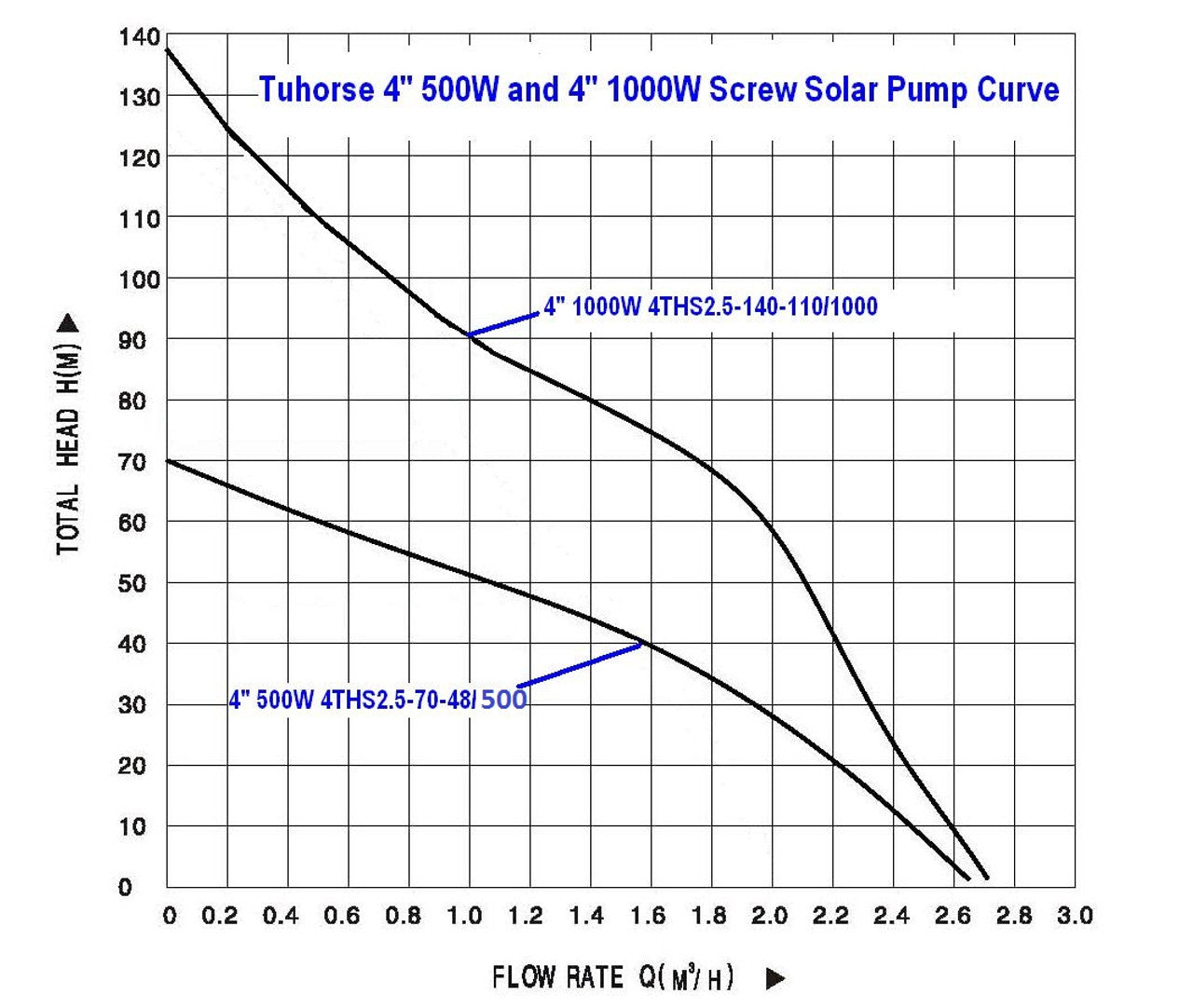

Pump recommended NO more than 100m dynamic head.

Head      L/Min      Gal/Hr
50m        25L       396
40m        33L       739
20m        39L       924
5-15m     43L      1056

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 200V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.

Options

240V/AC to 110V/Dc Converter
