3"500w Motor with 3m Cable

3"500w Motor with 3m Cable

$870.00 AUD
$870.00 AUD
Sale Sold out

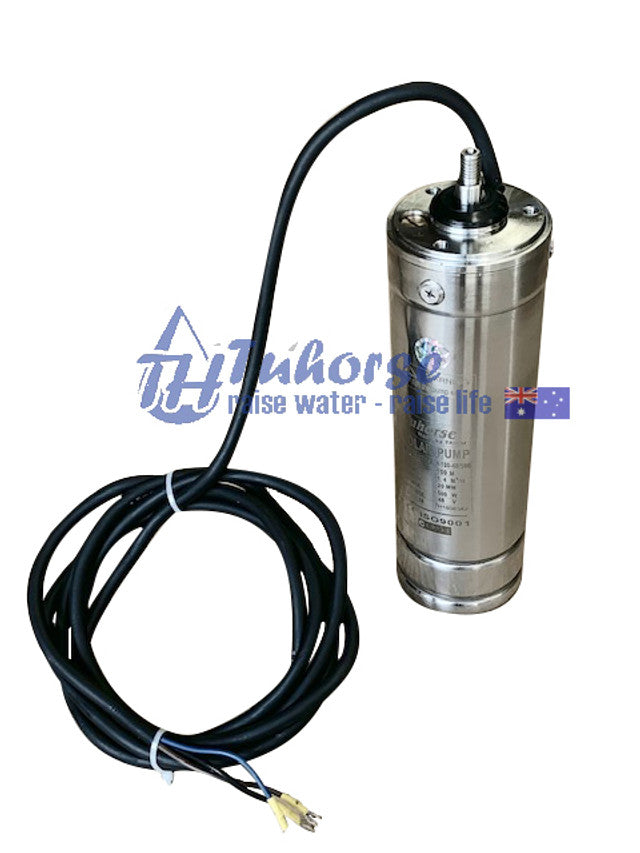

This is a motor only for 3"500w screw solar pump with 3m cable.

Note - Only motor

Product Specifications

Pump Specifications:

  • Pump Power: 210W/36VDC
  • Model: THS1.25-80-36/210
  • Pump Type: Helical Screw Rotor
  • Outlet: 3/4"
  • Weight: 10kg
  • Dimension: 76mm x 400mm
  • Maximum Depth: <30m

Pump recommended NO more than 30m dynamic head.

Head      L/Min    Gal/Hr
30m           8L           106

20m           10L          133
10m           12L          160

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 100V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.

Options

240V/AC to 48V/Dc Converter

Solar Panel
