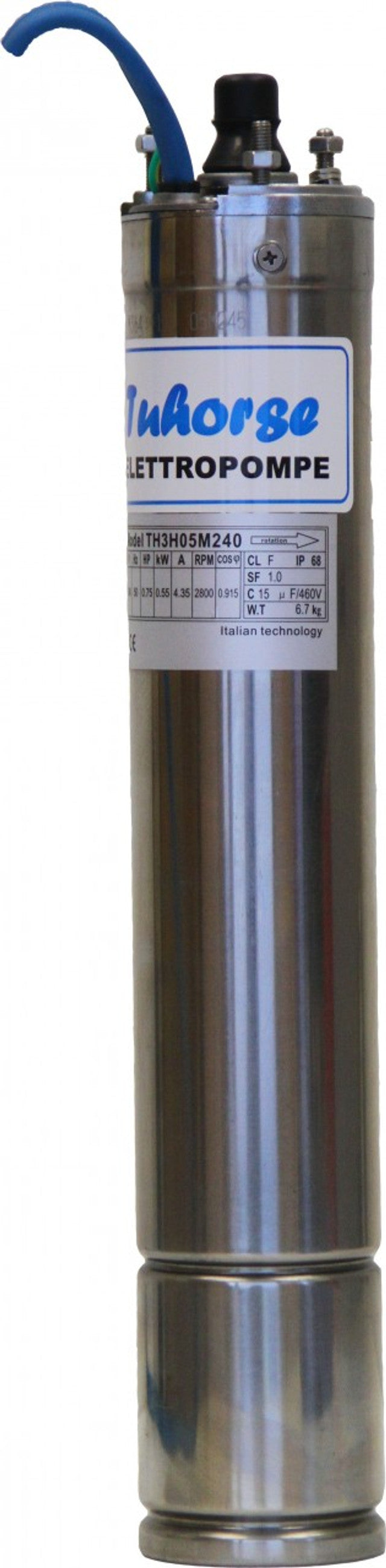

3" 0.75HP 550W 240V Motor Only & Free Delivery

3" 0.75HP 550W 240V Motor Only & Free Delivery

Regular price $385.00 AUD
Regular price Sale price $385.00 AUD
Sale Sold out
  • Conform to international standard of IEC34-ICE, whole blocked asynchronous motor squirrel cage rotor.
  • Outer shell, shaft and bottom made of stainless steel 304.
  • Brass alloy or Nickel plated cast-iron upper bracket.
  • Italian Mechanical Seal
  • Swedish bearing or equivalent products can undertake higher thrust load.
  • Pressure automatic adjusting device made of oil and waterproof reformed butyl rubber.
  • Flange connector conforms to NEMA standard.
  • Lacquer-coated wire conforms to US standard of NEMA MW37-C.
  • Motor cooling oil is to RoHS standard.

Product Specifications

Motor Specification:

  • Power: 3" / 0.75HP / 550W
  • Voltage: Single Phase 240V/50Hz
  • Current: 4.4A
  • RPM: 2800
  • Dimension: 75mm x 394mm
  • Power Cable: 2m flat W/Proof
  • Weight: 6.7kg
  • Degree of Protection: IP68
  • Insulation: Class B
  • Water PH: 6.5 - 8.0
  • Max starts per hour: 30
  • Max Submerged: 50m
  • Overload Trip Time: <10 Sec (when load is 5 times of rating current)
