3" 500W Solar Submersible Pump with 40m Cable Package & Free Delivery

3" 500W Solar Submersible Pump with 40m Cable Package & Free Delivery

$1,750.00 AUD
$1,750.00 AUD
Sale Sold out

3" 500W Solar Submersible Pump with 40m Cable Package & Free Delivery

Our 3" 500W solar submersible pump with 40m of cable features an advanced 3-phase brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start and Maximum Power Point Tracking (MPPT). With max flows over 2,400L/hr at a price that can't be beat, you will quickly see why this pump is one of our biggest sellers.

Built to last in Australia's tough agricultural environment, this pump delivers solid volumes up to 90m of head.  With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply

NOTE: You have to get below items locally: (package does not include the following)

  1. A stainless steel wire (called safety cable) to hold pump in bore. If pump water from dam or river. A float set up is required.
  2. Panels frames to support solar panels.
  3. Poly pipe from pump to water tank.

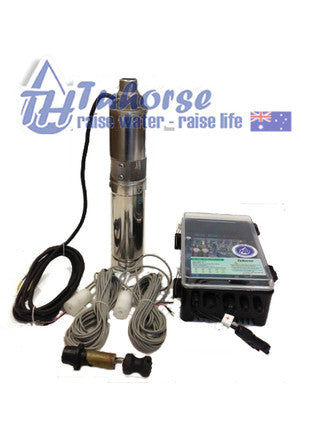

Product Inclusions

  • 3" 500W/48V stainless steel solar pump with 40m fitted power cable.
  • Pump control box.
  • One spare helical screw rotor.
  • 2 x MC4 extension cable for solar panels connect to control box.
  • 1 x 40m & 1 x 10m combined water sensor (for bore & water tank).
  • User manual.
  • 24 months (Pump & Control Box) back to base (Sydney) warranty.
  • Free delivery in Australia.

Product Specifications

Pump Specifications:

  • Pump Power: 500W/48VDC
  • Pump Model: 3THS1.4-100-48/500
  • Pump Type: Helical screw rotor
  • Max Flow: 30L/min
  • Max Head: 100m
  • Outlet: 3/4"
  • Weight: 10kg
  • Dimension: 76mm x 450mm
  • Submerge Depth: <100m

Pump recommended NO more than 80m dynamic head.

Head      L/Min    Gal/Hr
80m             7L           93
70m           10L          133

60m           18L          213
50m           22L         266
30-40m    24L        320
10-20m    30L         400

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 100V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.
