2" 370W Solar Submersible Pump with 40m Cable Package & Free Delivery

2" 370W Solar Submersible Pump with 40m Cable Package & Free Delivery

$1,700.00 AUD
$1,700.00 AUD
Sale Sold out

2" 370W Solar Submersible Pump with 40m Cable Package & Free Delivery

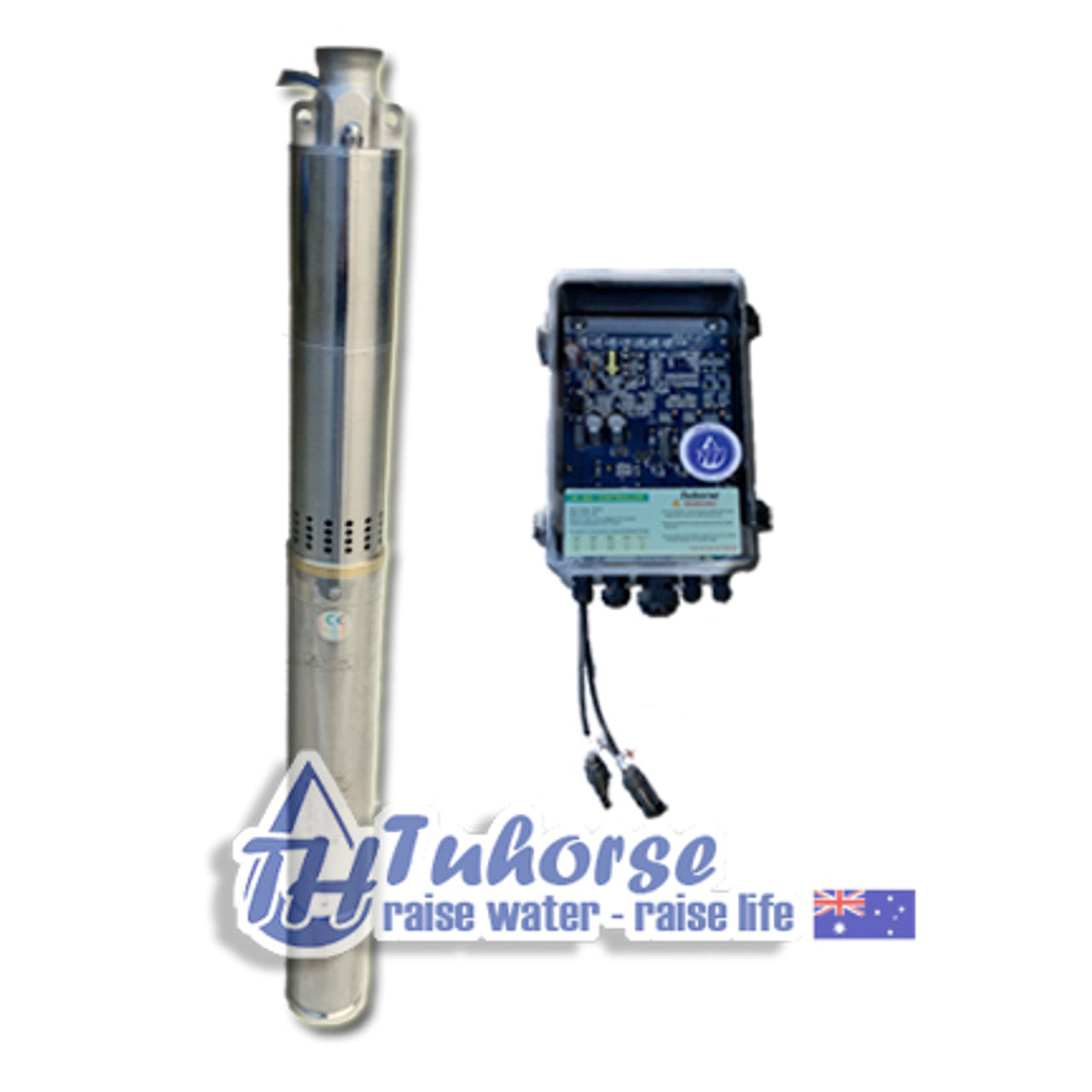

Our 2"370w solar submersible pump with 40m of cable features an advanced 3-phase brushless stainless steel DC motor, high quality NSK Japanese bearings, adjustable pump speed, integrated soft start and Maximum Power Point Tracking (MPPT). With max flows up to 2,100L/hr, you will quickly see why this pump is a value favourite among many of our customers.

Built to last in Australia's tough agricultural environment, this pump delivers solid volumes up to 90 metres of head.  With our easy DIY installation, you can enjoy years of reliable and maintenance free water supply. This package comes WITHOUT solar panels.

You will have to get the following and NOT included in package -

  1. NOTE - Solar Panels
  2. A stainless-steel wire (called safety cable) to hold pump in bore. If pump water from dam or river.
  3. A float set up is required.
  4. Panels frames to support solar panels.
  5. Poly pipe from pump to water tank.
  6. Extra power cable and waterproof cable joiner.

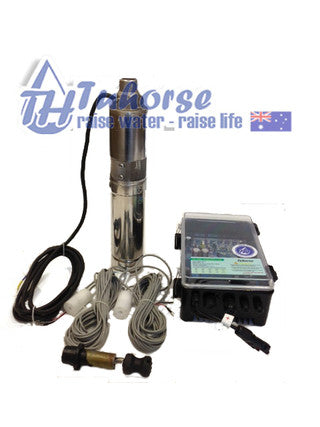

Product Inclusions

  • 2" 370W/36V stainless steel solar pump with 3m power cable.
  • Pump Control Box.
  • One spare helical screw rotor
  • 2 x MC4 extension cable for solar panels connect to control box.
  • 1 x 40m & 1 x 10m combined water sensor (for bore & water tank).
  • User manual.
  • 24 months (Pump & Control Box) back to base (Sydney) warranty.
  • Free delivery in Australia.

Product Specifications

Pump Specifications:

  • Pump Power: 370W/36VDC
  • Pump Type: Helical Screw Rotor
  • Maximum Head: 95m
  • Maximum Flow: 2000L/hr
  • Outlet: 1/2"
  • Weight: 10kg
  • Dimension: 58mm x 50mm
  • Maximum Depth: <95m

Pump recommended to run under 95m dynamic head.

Head      L/Min    Gal/Hr
80m           10L          133

60m           18L          240
40m           25L          330
10m           33L         440

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 100V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.

Options

240V/AC to 48V/Dc Converter

Solar Panel
